Small Bender

KR-PB-A42



Size:1/2"~1 1/4" Ø20~ Ø42mm(45°/90°)
Radius: R64~130mm
Length:190~360mm
Production : 1pc / 5sec~7sec
Power：25.5KW
Dimensions：L4700mm x W1530mm x H2000mm
Weight:1760+165kg



Inquiry

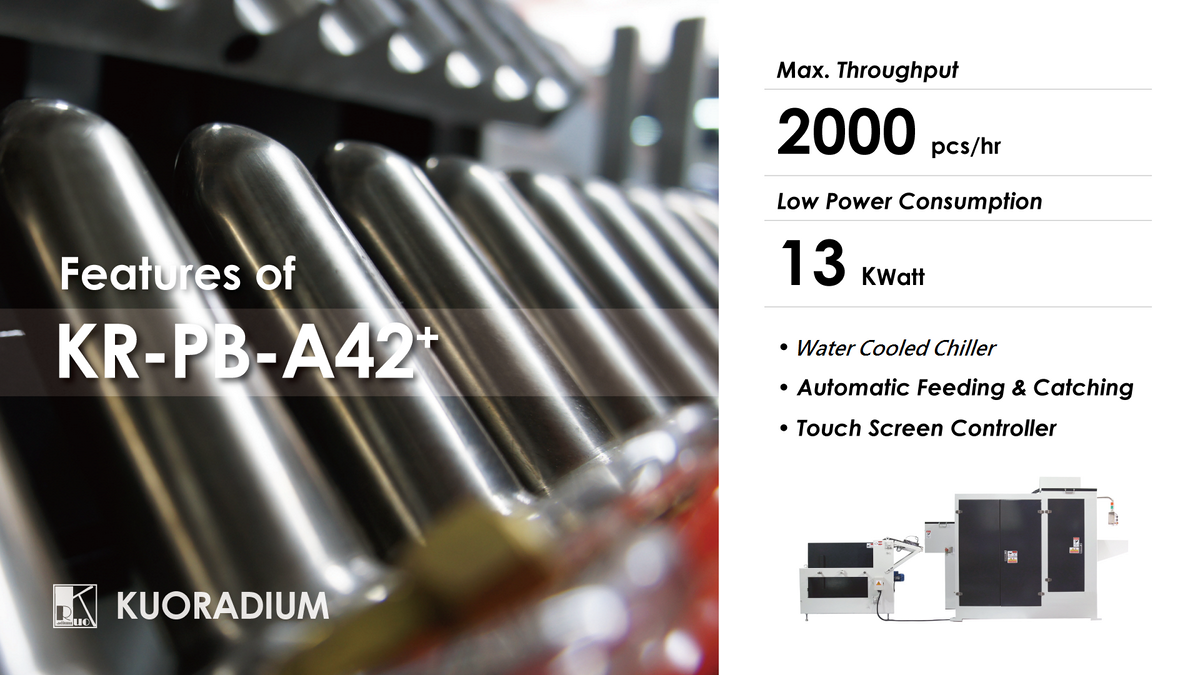

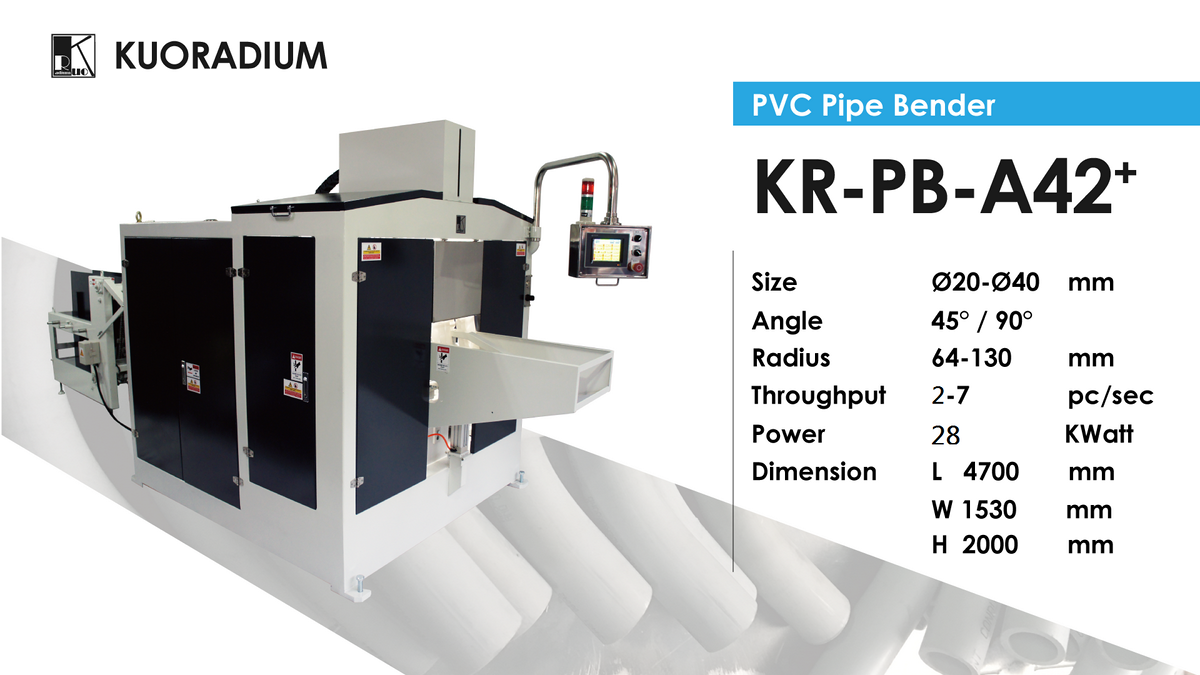

KR-PB-A42⁺



Size:1/2"~1 1/4" Ø20~ Ø42mm(45°/90°)
Radius: R64~130mm
Length:190~360mm
Production : 1pc / 1.8sec~7sec
Power：28KW
Dimensions：L4700mm x W1530mm x H2000mm
Weight:1760+165kg



Inquiry





•
•
•





Meduim Bender

KR-PB-A63



Size:1 1/2"~2 1/2" Ø48~ Ø63mm(45°/90°)
Radius: R130~245mm
Length:300~600mm
Production : 1pc / 15sec~24sec
Power：32KW
Dimensions：L5300mm x W2000mm x H2300mm
Weight:2500+200kg



Inquiry

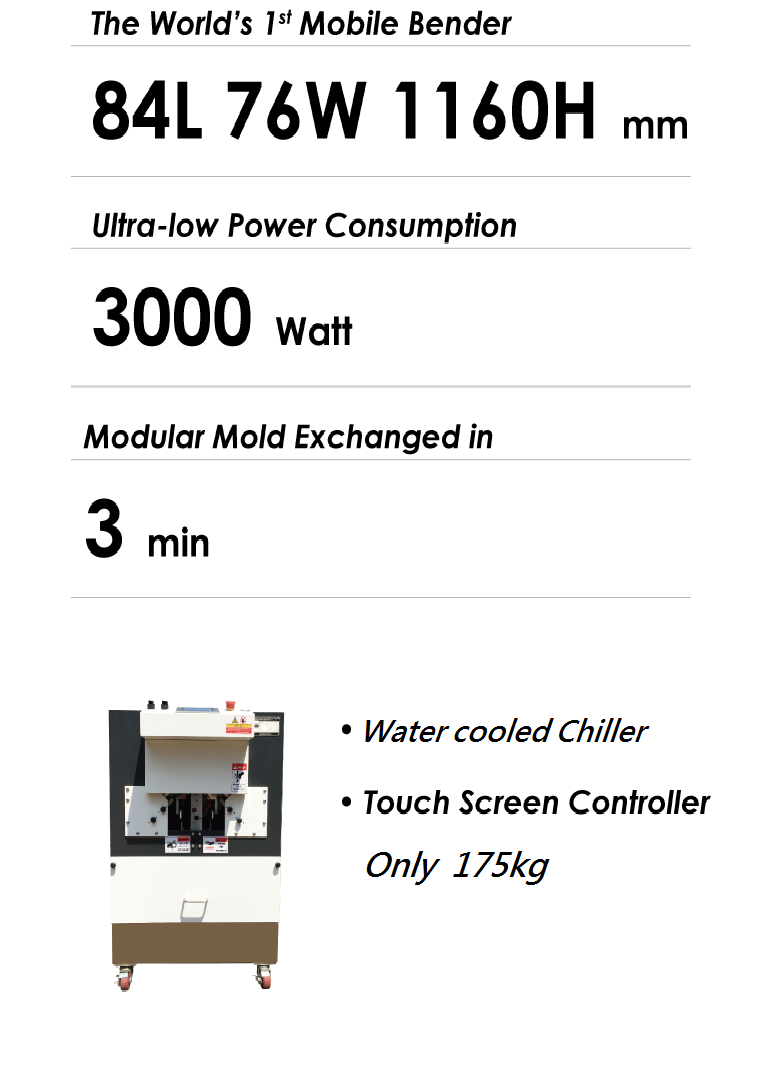

Mini Bender

KR-PB-AS26



Size: 1/2"~1" Ø20~ Ø34mm(45°/90°)
Radius: R64~105mm
Length:140~255mm
Production : 1pc / 15sec~30sec
Power：3.3KW
Dimensions：L840mm x W760mm x H1160mm
Weight:175kg



Inquiry







J Type Bender

KR-PB-AJ26



Size:1/2"~3/4" Ø20~ Ø26mm
Radius: R110
Length:570~670mm
Production : 1pc / 5sec~7sec
Power：26KW
Dimensions：L5100mm x W2000mm x H2100mm
Weight:2500+200kg



Inquiry
